Checkbox

​

Overview

​

Basic Usage

​

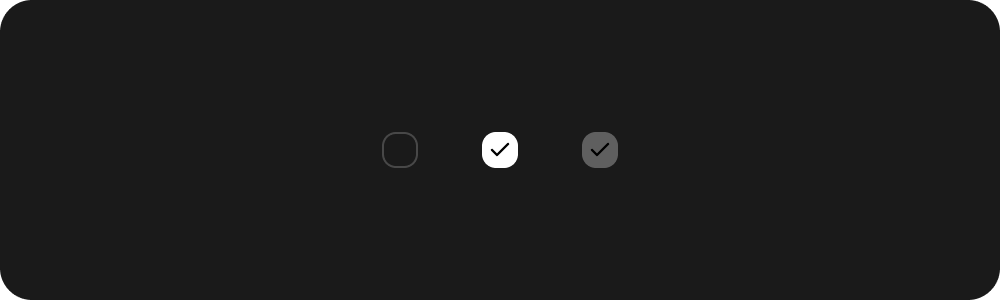

Simple Checkbox

HuxCheckbox(
  value: isChecked,
  onChanged: (value) {
    setState(() {
      isChecked = value ?? false;
    });
  },
)

​

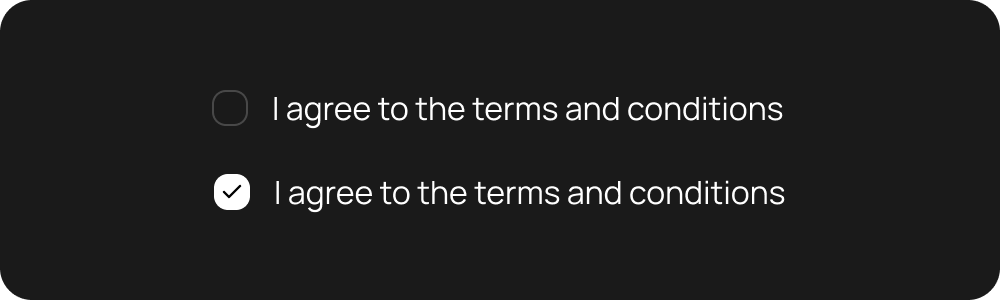

Checkbox with Label

HuxCheckbox(
  value: isAgreed,
  onChanged: (value) {
    setState(() {
      isAgreed = value ?? false;
    });
  },
  label: 'I agree to the terms and conditions',
)

​

Properties

​

Core Properties

• value - Current checked state (true/false)
• onChanged - Callback triggered when state changes (null for disabled)
• isDisabled - Whether the checkbox is disabled (default: false)

​

Label Properties

• label - Optional text label displayed next to the checkbox

​

Styling Properties

• size - Checkbox size variant (small, medium, large)

​

Size Variants

​

Small Checkbox

• Checkbox Size: 16px × 16px
• Icon Size: 12px
• Font Size: 14px
• Label Spacing: 8px

​

Medium Checkbox ⭐ Default

• Checkbox Size: 20px × 20px
• Icon Size: 14px
• Font Size: 16px
• Label Spacing: 12px

​

Large Checkbox

• Checkbox Size: 24px × 24px
• Icon Size: 16px
• Font Size: 18px
• Label Spacing: 16px

​

Styling & Colors

​

Checkbox Colors

• Background (Unchecked): HuxTokens.surfacePrimary(context)
• Background (Checked): HuxTokens.primary(context)
• Border (Unchecked): HuxTokens.borderPrimary(context)
• Border (Checked): HuxTokens.primary(context)
• Border (Disabled): HuxTokens.borderSecondary(context)

​

Check Icon Colors

• Check Color: Automatically calculated for optimal contrast
• Disabled State: Transparent

​

Text Colors

• Label Text: HuxTokens.textPrimary(context)
• Disabled Label: HuxTokens.textDisabled(context)

​

States

​

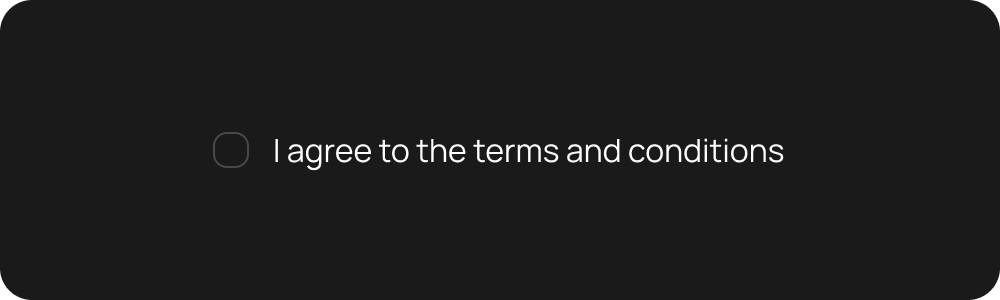

Unchecked State

• Empty checkbox with border
• Ready for user interaction

​

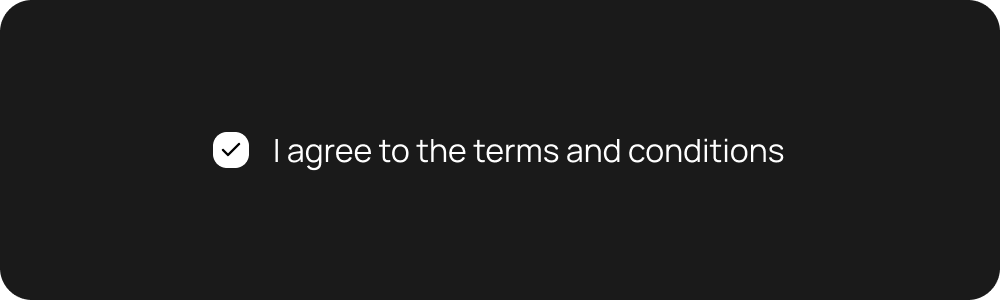

Checked State

• Filled checkbox with check icon
• Visual confirmation of selection

​

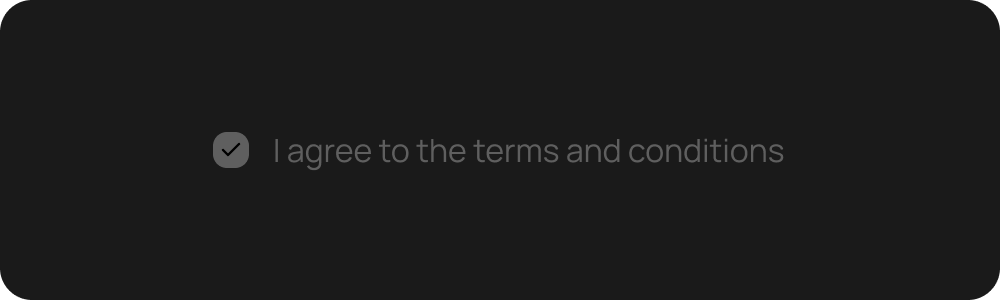

Disabled State

HuxCheckbox(
  value: isChecked,
  onChanged: null, // Disables the checkbox
  label: 'This option is disabled',
  isDisabled: true,
)

• Reduced opacity and non-interactive
• Maintains visual consistency

​

Accessibility

​

Screen Reader Support

• Proper semantic labeling
• State announcements
• Focus management

​

Keyboard Navigation

• Tab key support
• Space/Enter key activation
• Focus indicators

​

Examples

​

Related Components

• HuxInput - Text input component
• HuxSwitch - Toggle switch component
• HuxDateInput - Date input component
