Overview

Hux UI provides loading components for indicating async operations:
  • HuxLoading - Customizable loading indicators
  • HuxLoadingOverlay - Full-screen loading overlays
HuxLoading Indicators

​

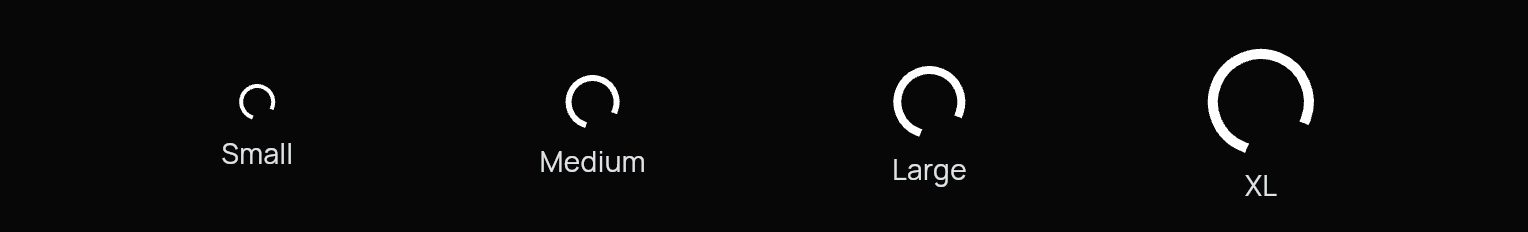

Component Variants

​
Small Loading Indicator

Compact loading indicator for tight spaces:
HuxLoading(size: HuxLoadingSize.small)

​
Medium Loading Indicator

Standard loading indicator (default size):
HuxLoading(size: HuxLoadingSize.medium)

​
Large Loading Indicator

Prominent loading indicator for important operations:
HuxLoading(size: HuxLoadingSize.large)

​
Extra Large Loading Indicator

Maximum size loading indicator:
HuxLoading(size: HuxLoadingSize.extraLarge)

​
Loading with Custom Colors

Loading indicator with theme-aware colors:
HuxLoading(
  size: HuxLoadingSize.medium,
  color: HuxTokens.primary(context),
)

​
HuxLoading

​
Sizes

  • small - Compact loading indicator
  • medium - Standard loading indicator (default)
  • large - Prominent loading indicator

​
HuxLoadingOverlay

Full-screen overlay that blocks user interaction during loading operations. Perfect for API calls, file uploads, or any long-running processes.
HuxLoadingOverlay(
  isLoading: _isLoading,
  message: 'Processing...',
  child: YourContent(),
)

​
Properties

  • isLoading - Boolean flag to control overlay visibility
  • message - Optional loading message displayed above the spinner
  • child - The main content widget that will be covered by the overlay
  • barrierColor - Optional custom barrier color (defaults to semi-transparent black)
  • spinnerColor - Optional custom spinner color (defaults to theme primary color)

​
Advanced Usage

HuxLoadingOverlay(
  isLoading: _isLoading,
  message: 'Uploading files...',
  barrierColor: Colors.black54,
  spinnerColor: HuxTokens.primary(context),
  child: Scaffold(
    appBar: AppBar(title: Text('File Upload')),
    body: FileUploadForm(),
  ),
)

​
Usage Example

class AsyncOperationExample extends StatefulWidget {
  @override
  _AsyncOperationExampleState createState() => _AsyncOperationExampleState();
}

class _AsyncOperationExampleState extends State<AsyncOperationExample> {
  bool _isLoading = false;

  void _performAsyncOperation() async {
    setState(() {
      _isLoading = true;
    });

    // Simulate async work
    await Future.delayed(Duration(seconds: 3));

    setState(() {
      _isLoading = false;
    });
  }

  @override
  Widget build(BuildContext context) {
    return HuxLoadingOverlay(
      isLoading: _isLoading,
      message: 'Loading data...',
      child: Column(
        children: [
          HuxButton(
            onPressed: _isLoading ? null : _performAsyncOperation,
            isLoading: _isLoading,
            child: Text('Start Operation'),
          ),
        ],
      ),
    );
  }
}

​
Best Practices

  1. Use for blocking operations - Perfect for API calls, file uploads, or data processing
  2. Provide clear messages - Help users understand what’s happening
  3. Consider duration - For very short operations (< 500ms), consider using inline loading instead
  4. Accessibility - The overlay automatically handles screen reader announcements
  5. Theme integration - Colors automatically adapt to light/dark themes

​
Accessibility Features

  • Screen reader support - Loading state is announced to assistive technologies
  • Focus management - Prevents interaction with background content during loading
  • High contrast support - Uses Hux UI’s accessible color tokens
  • Keyboard navigation - Properly blocks keyboard input during loading states
